Calibrator – White point correction

Calibrator – White point correction

White Point Correction Tool in Calibrator allows for a pmm to be recalibrated with a newly measured white point.

Available from V6.6 onwards.

How

As it recalculates the pmm, making a copy of the pmm prior to recalcualating the white point can be advisable.

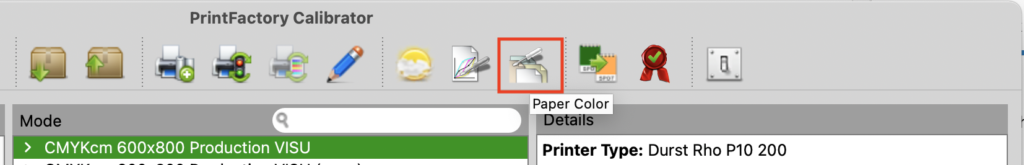

  • Select the Paper Color icon
  • Connect the spectro and select Measure.

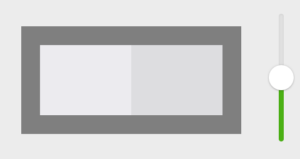

    The rectangle shows the current white point on the left, the measured white point on the right.
  • Save and the pmm is recalculated with a new white point.
