Combining Spot Tuning charts

Combining Spot Tuning charts

Several spot tuning charts can be combined and printed as 1 job.
This is found in Calibrator > Spot Colors > tune
This is available from V6.7.0 onwards

How to combine the charts

Calibrator:

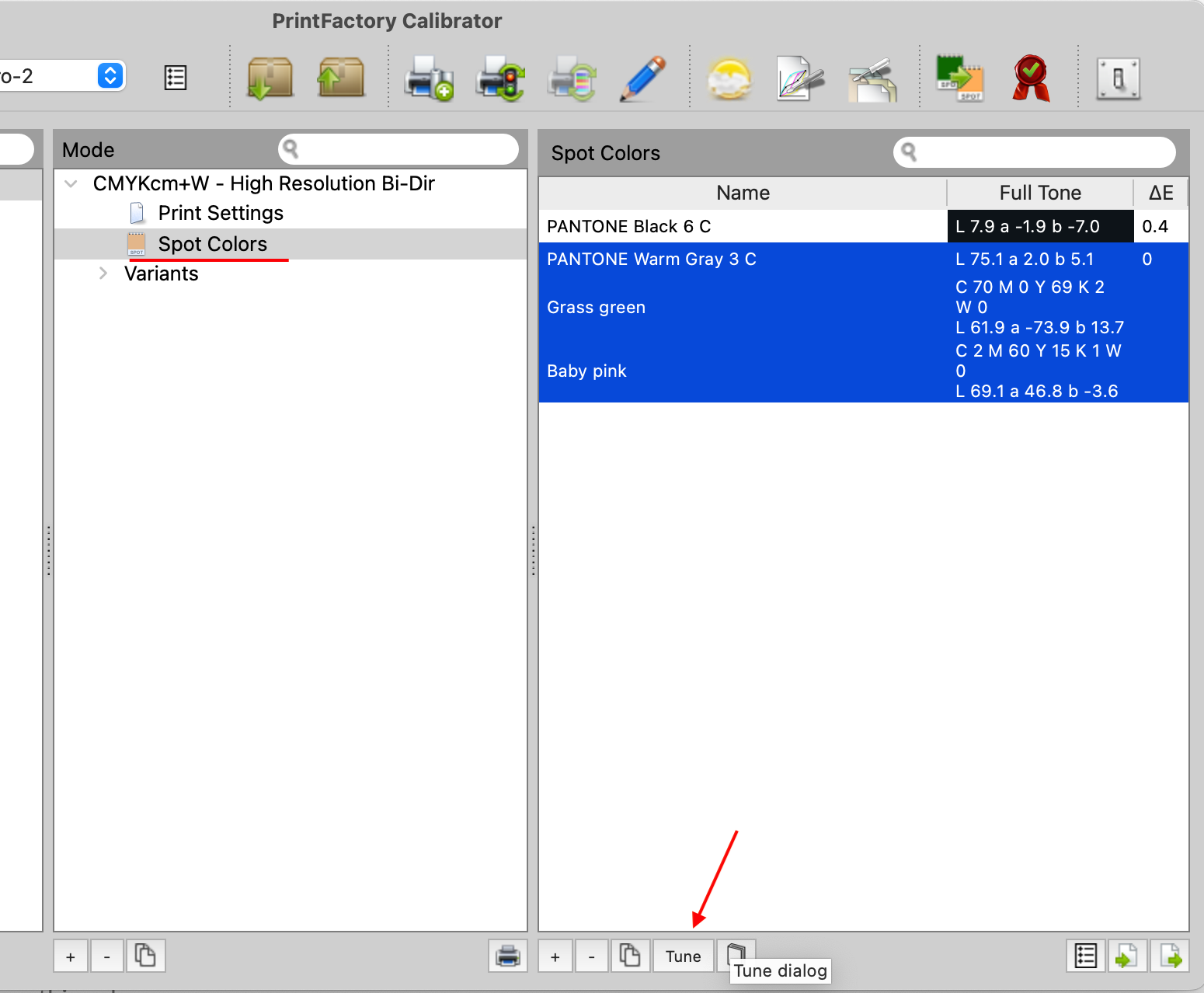

1. Select Spot colors in the mode setting of the pmm
2.  Select multiple spot colors and click une


3. A drop down with the selected spots is created
4. Set settings for each spot
5.  Print

   => 1 job is sent to the RIP combining all charts.
