Defining Cut Settings

Defining Cut Settings

The cut settings integrated into the driver of each cutting device define the settings of the job, for example, when to cut, or which cutting pressure to use.

How to define the cut settings

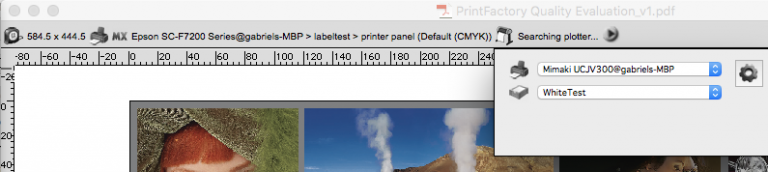

    1. On the Quick Production bar, click the cutting device symbol.
    2. Choose cutter and media from the drop-down lists.



    3. Click the Settings button to bring up the Driver Settings.
    4. Choose whether to use the Cutter Settings by Printer or Cutter Settings by Software.
    5. Click OK.
