Durst: Hotfolder not found

Durst: Hotfolder not found

Durst drivers allow for various output hotfolders, which can be set in the PMM and is available in e.g. Layout to change.



The hotfolders are created by the Durst DFE and therefore, the output path in the RIP driver needs to be set to the hotfolders folder on the DFE to allow the hotfolder number option in the driver to work.

  1. In RIP:   E.g.: Y://Hotfolders  (map to root on DFE)
  2. On the Durst DFE it will be mnt/images

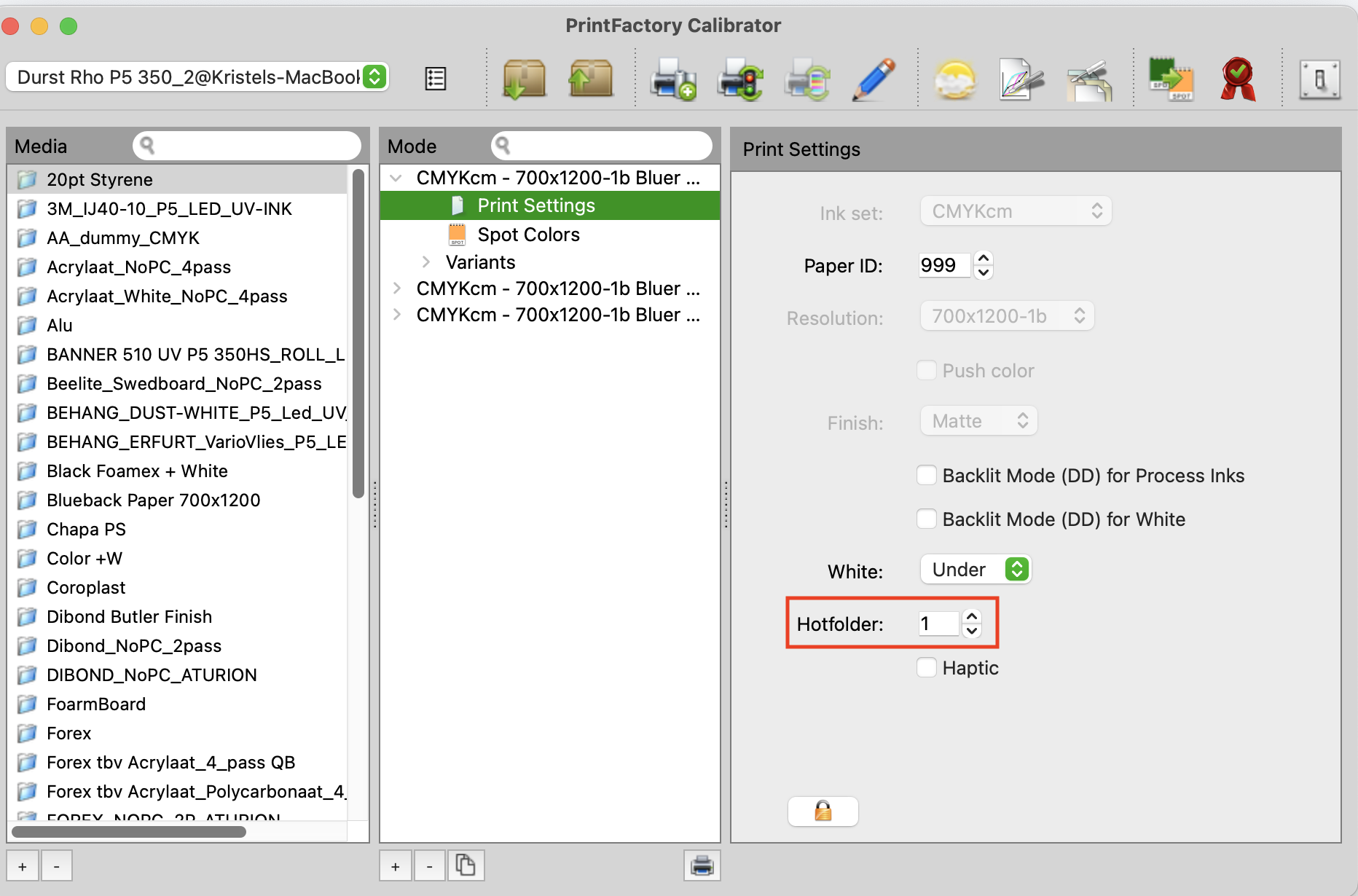

  3. In Calibrator you select Hotfolder number: 0 stays in the same Hotfolder root folder
    1. -> 1 -> will rip to  Hotfolders/Hotfolder01
-  If in RIP driver you map it to one of the hotfolders
  -> e.g. Hotfolders/Hotfolder01 directly:  You cannot select the hotfolder nr in Calibrator

Warning
Note:  If RIP driver is mapped to a local folder, no hotfolder numbers can be as those folder are not created and thus not found.
