Edit Paths

Edit Paths

You can use the Actions panel (Window > Actions) to manipulate points and paths.



First select the path or point and then apply the action. By clicking the Shift key, you can apply the action to more than just one pair of points.

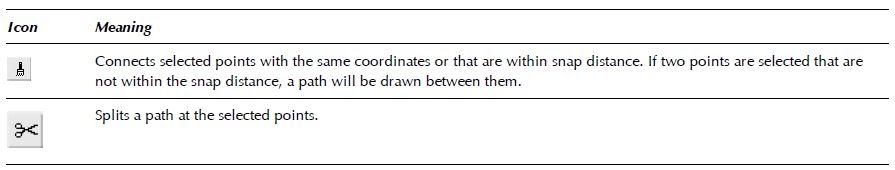

Connect and split

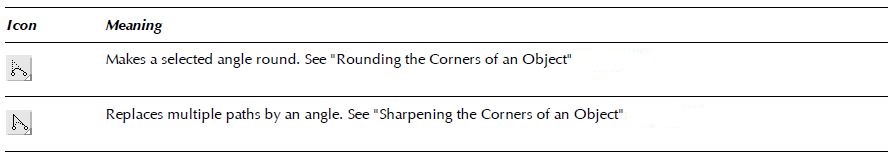

Round and sharpen

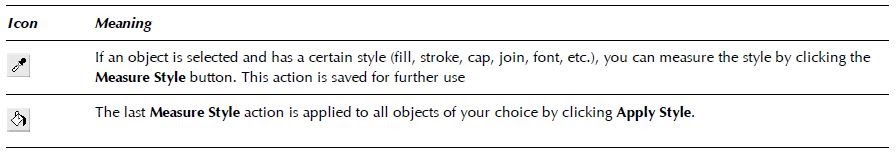

Measure style

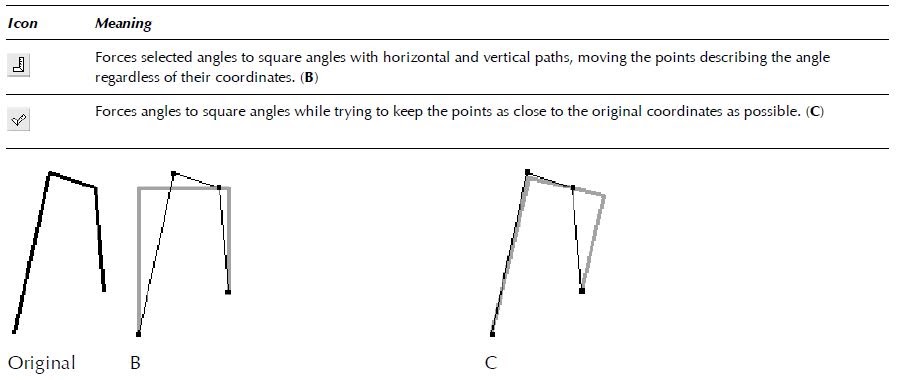

Square—forced and arbitrary

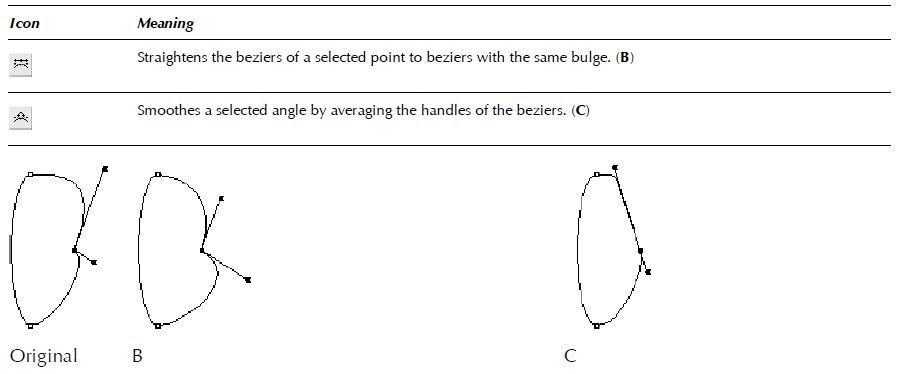

Beziers—bulge and smooth

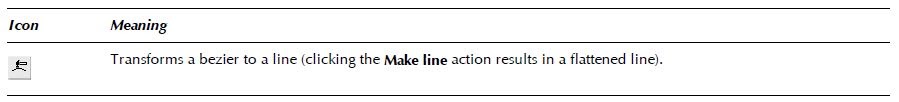

Bezier to line

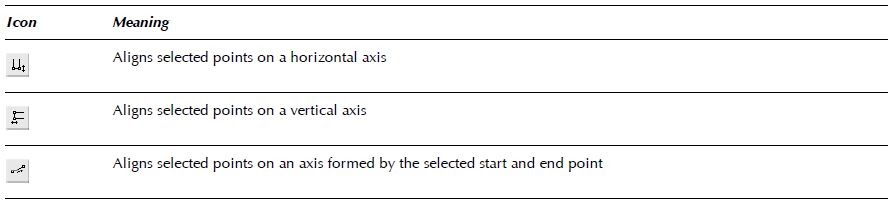

Align points

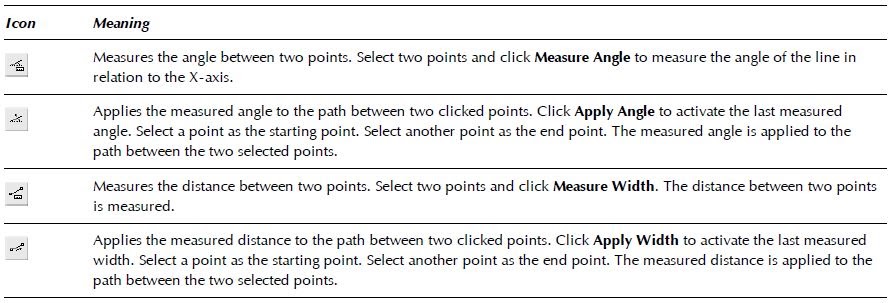

How to measure angles and distances
