Epson SC-S80600 Layering

Epson SC-S80600 Layering

This article explains the layering options in the Epson SC-S80600 driver.

Inkset:

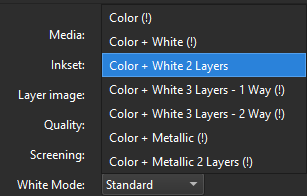

First of all, in order to be able to print in multiple layers you need to select a layering inkset:


1. Color = Color only

2. Color + White = Color & White in one layer

3. Color + White 2 Layers = Color & White in two separate layers

4. Color + White 3 Layers 1 way = Color + White in three separate layers, but viewed in 1 direction:

Surface/Reverse






5. Color + White 3 layers 2 way = Color + White in three separate layers, but viewed in 2 directions(Sandwich printing):

Surface/Reverse



6. Color + metallic = Color + Metallic in one layer

7. Color + metallic 2 layers = Color + Metallic in 2 separate layers

Layer Image mode

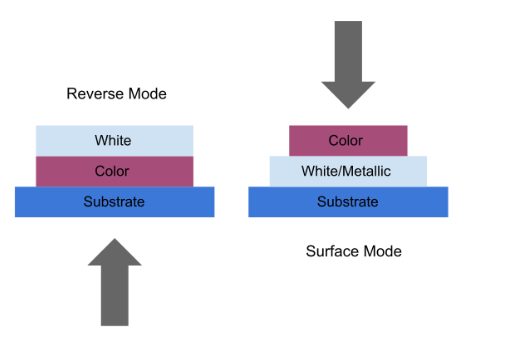

As well as the inkset option above, you also need to determine the viewing direction of your print mode either in Surface or Reverse:


Updated on July 14, 2023
