Flatbed printers: Layout orientation of the sheet for Double Sided

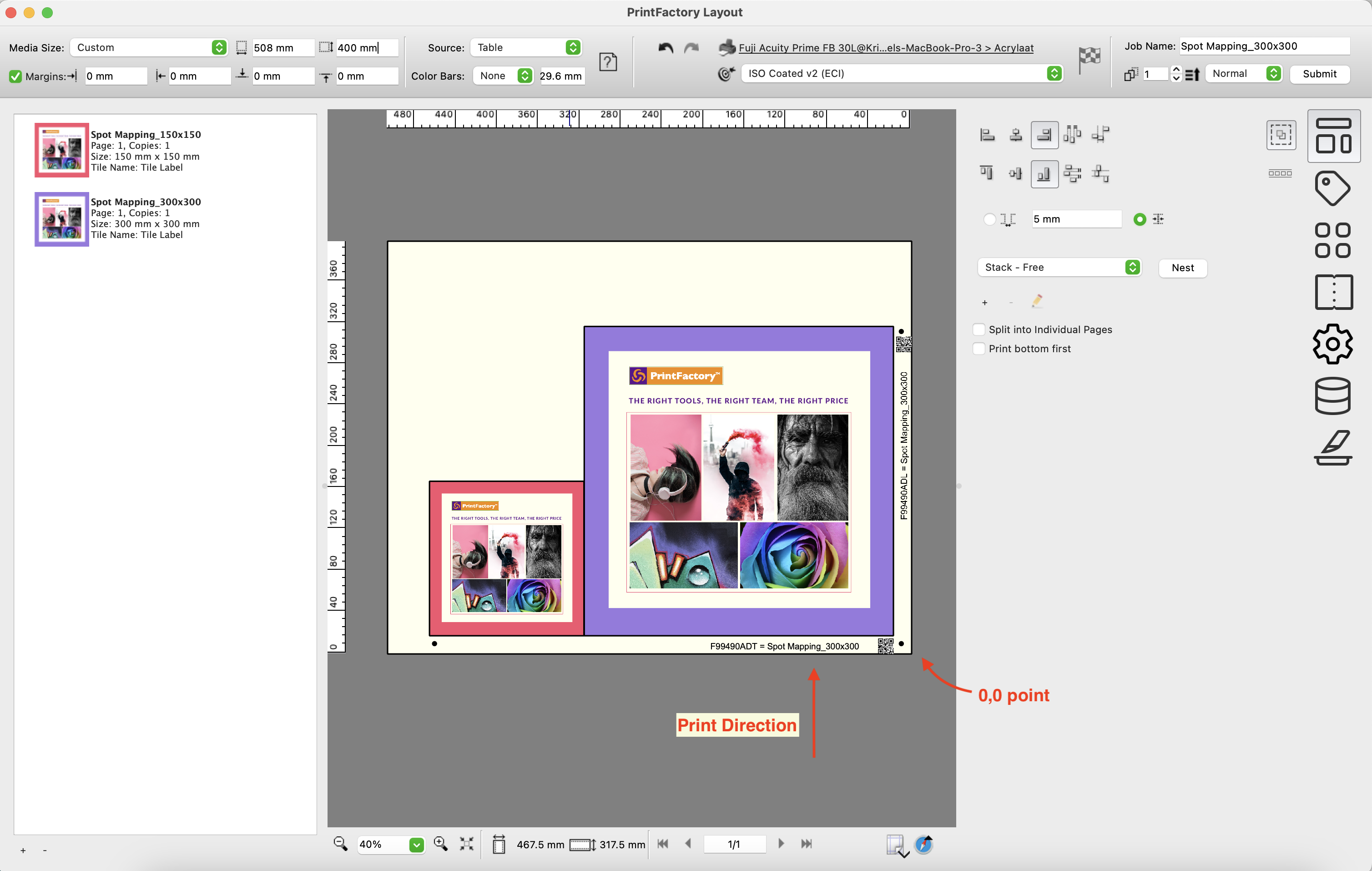

In Layout the flatbed printers have their default origin or 0,0 point, bottom right.

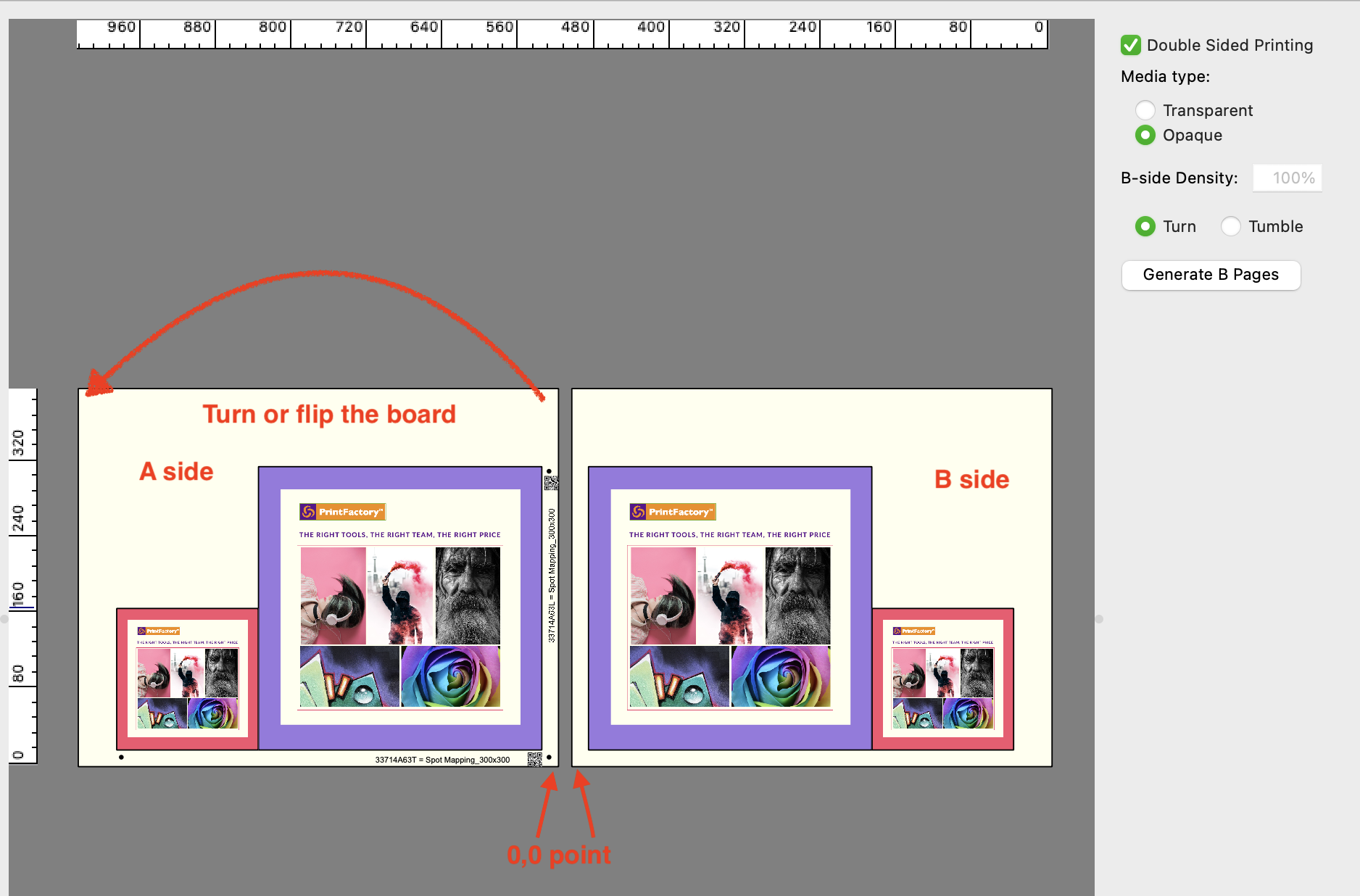

When printing double sided: in case of Opaque with Turn,  the A-side is flipped  and the 0,0 point is thus moved to left bottom so the 0,0 point of the B-side falls on top of the 0,0 point of the A-side.
