Fotoba XY cutter – Sensor guide

Fotoba XY cutters have a sensor guide. The sensor guide allows the vertical cutter blades to adjust to any distortion in the print or deformation of the media.

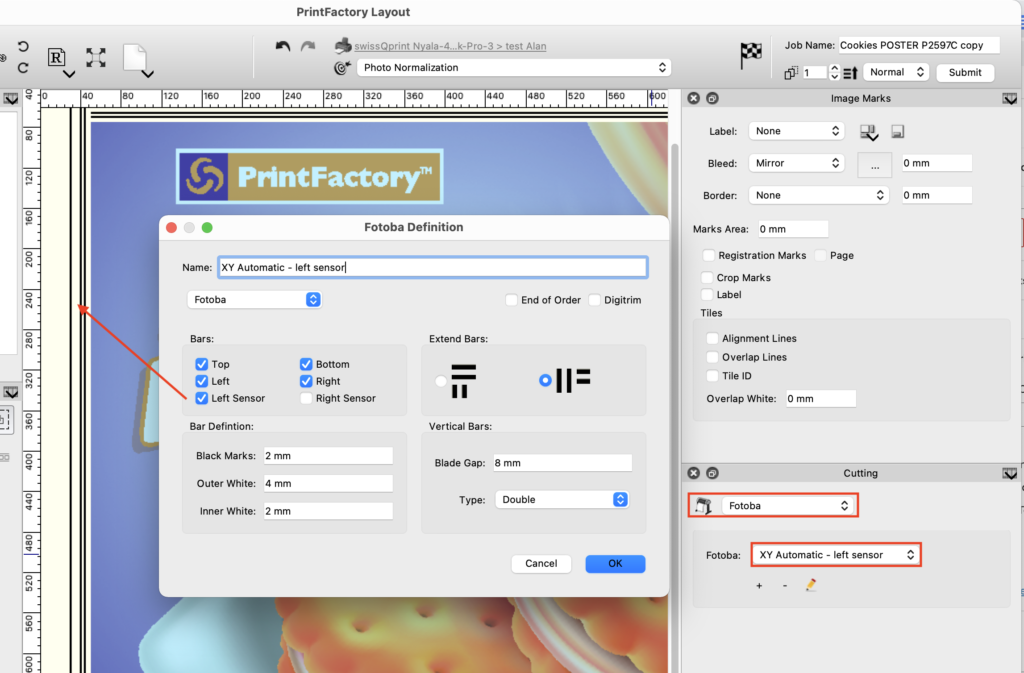

The option adds an additional continuous vertical line for X/Y cutters equipped with a sensor.

Where: Layout -> Cutter -> Fotoba XY automatic
