Mimaki JFX Multiple copies

Mimaki JFX Multiple copies

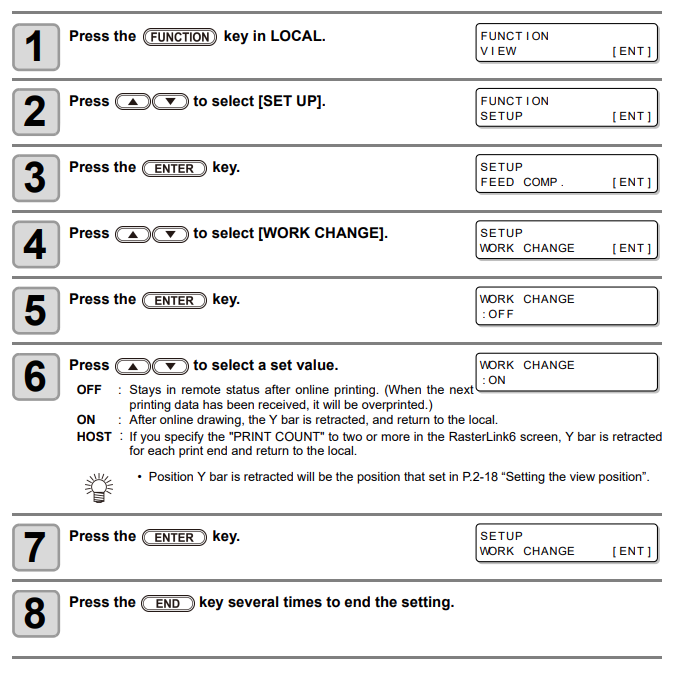

It is possible to print multiple copies from the RIP to the Mimaki JFX series flatbed printers. Each copy of your job will print independently on a new sheet. You must first enable the “Work Change” setting on the printer to ON:

You can also set the vacuum behavior in the same place. Set the Vacuum to OFF & the following steps will take place:

1. Send multiple copies from the PrintFactory RIP.
2. Load the first sheet onto the printer bed & set the machine to REMOTE.
3. The first copy will print.
4. Printer Y bar will move to ‘view’ position & vacuum will turn off. Printer goes to LOCAL.
5. Load 2nd sheet onto printer bed.
6. Set machine back to REMOTE.
7. 2nd copy will print.
8. Repeat steps 4-7 for remaining copies.
