Recalibrating pmms for complex post-printing finishing e.g. dye-sub

Recalibrating pmms for complex post-printing finishing e.g. dye-sub

Maintaining PMMs for processes with complex post-printing finishing steps can make iterative recalibration time-consuming. To address this, Calibrator allows you to reprint only the gamut file and automatically recalculate the PMM.

Available from version V2026.01.0

Process steps:

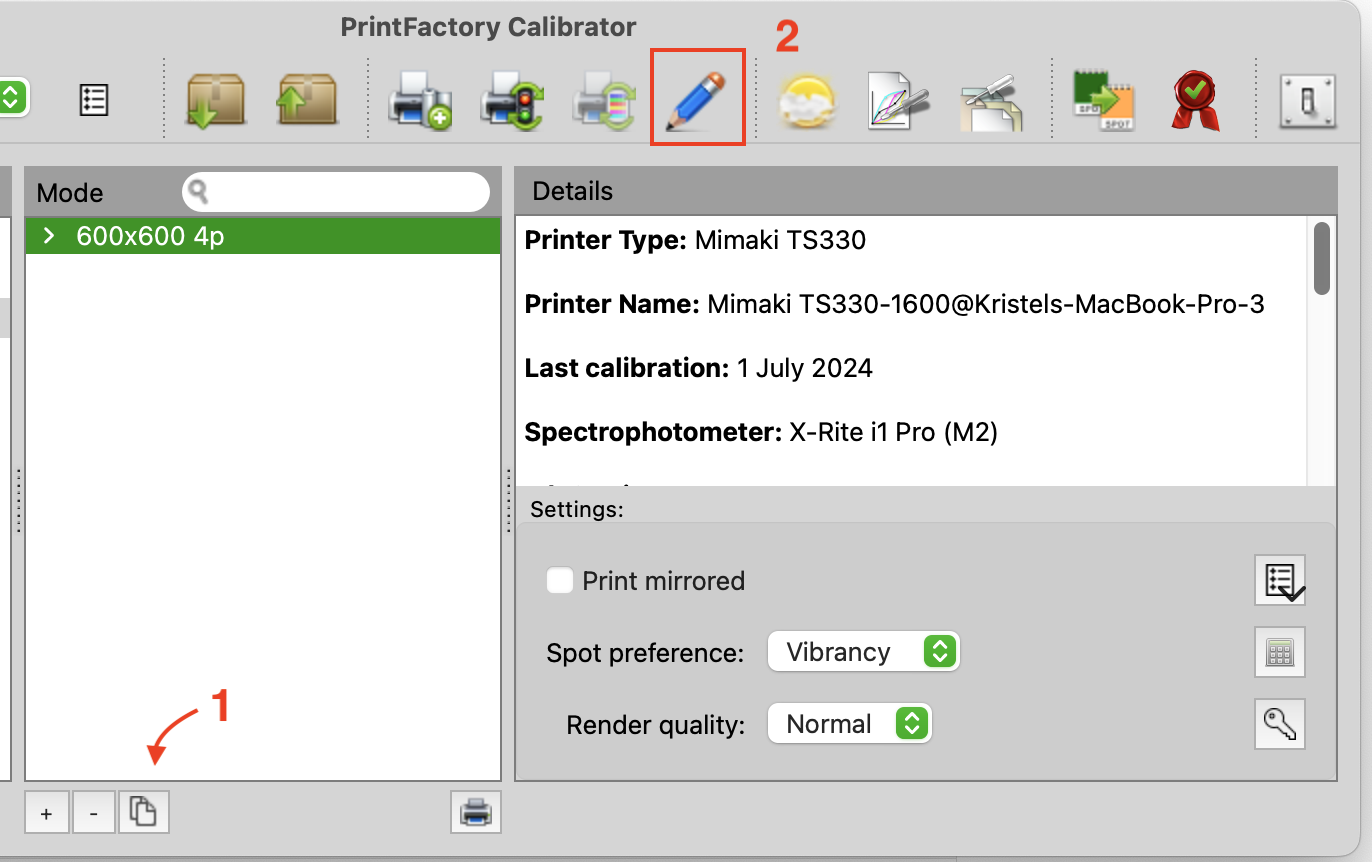

1. Duplicate the pmm
2. Click Pencil Icon (Edit PMM) to open the PMM

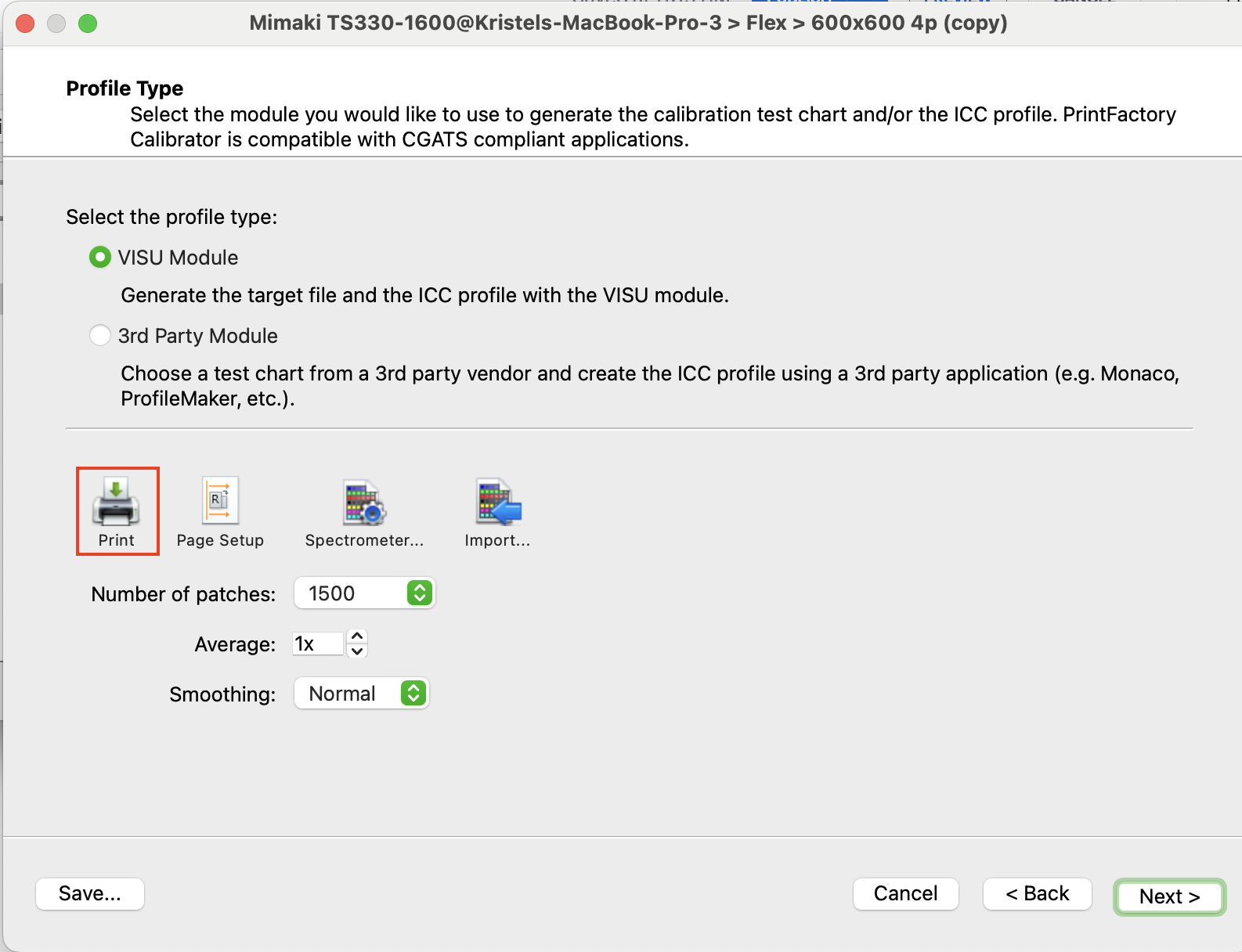

3. Walk Back till gamut file and Print the Gamut file again -> Next
4.  Remeasure, click Next to recalculate the gamut -> Finish.

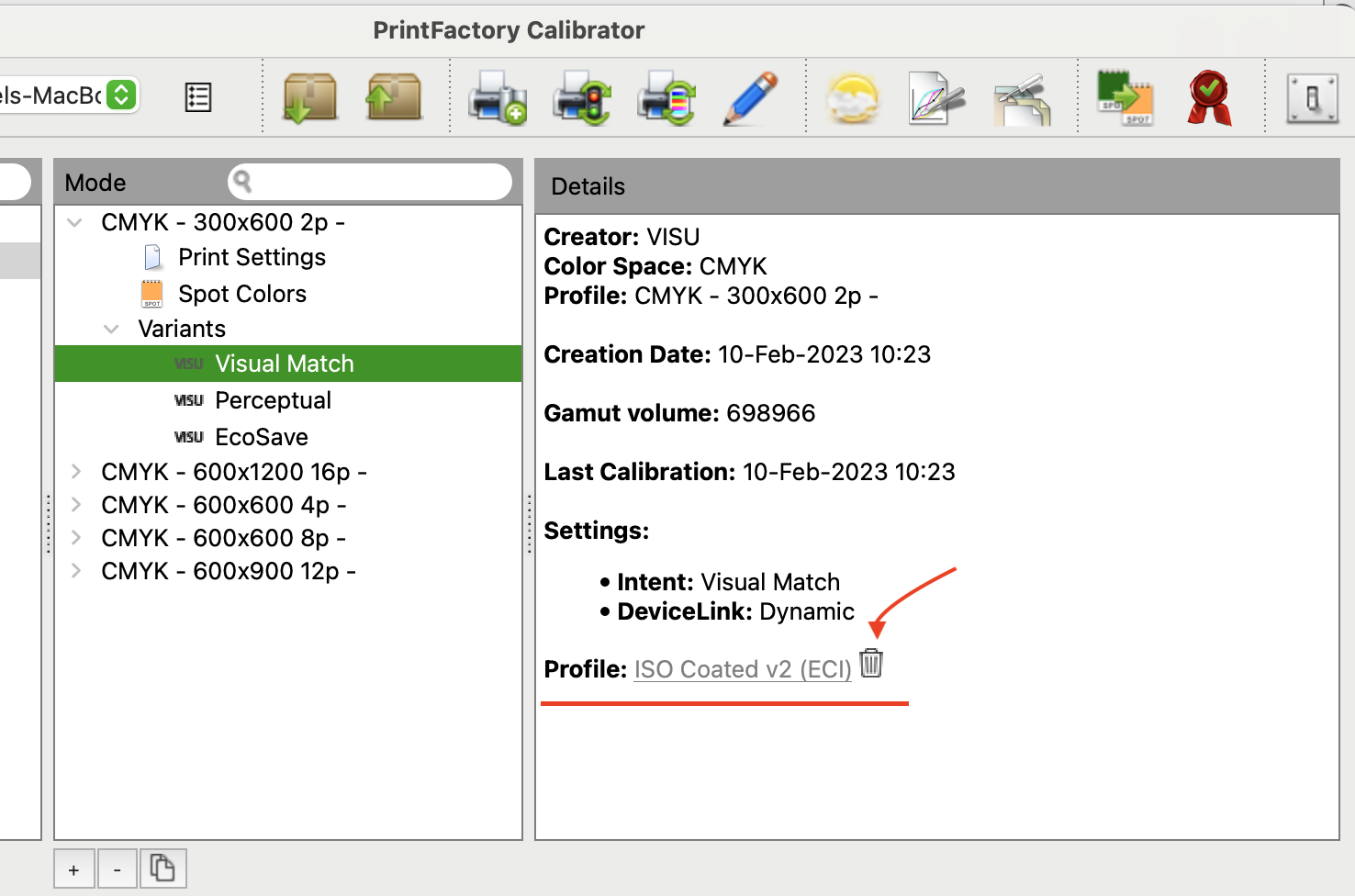

5. Delete the Device Link.  A new Device LInk is automatically created when sending the first file to the RIP.

Alert
Deleting the Device Link is a crucial step
