RIP error: "Reference profile could not be loaded"

RIP error: "Reference profile could not be loaded"

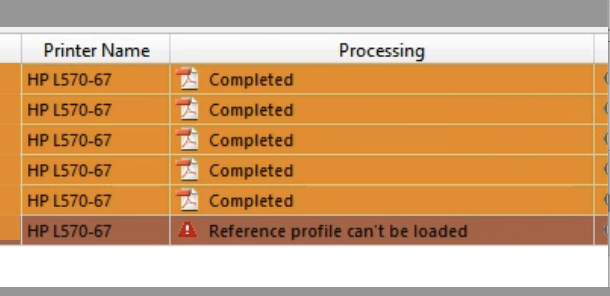

Error appears in the Processing tab in the RIP job window.



Reason:  The Queue has lost the link to the Reference profile

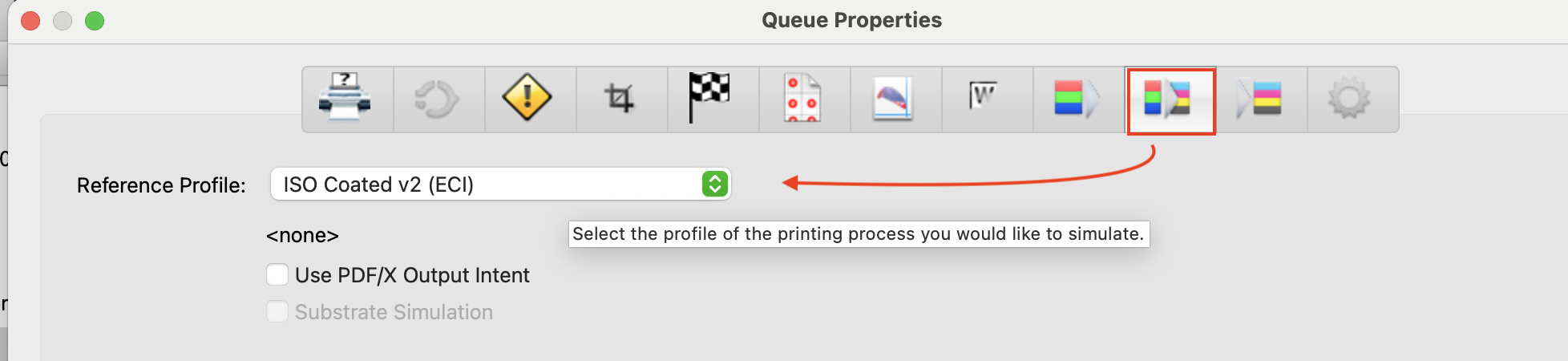

Resolution:  open the RIP queue and select the Reference profile tab.  Toggle between another reference profile and back and save the Queue.  This will restore the connection to the reference profile.   Add new job in the Queue.
