SwissQprint Nyala-4: 3 and 5 layer printing - driver settings
Below is the layering in the driver setup to print 3 and 5 layers for the Nyala.
To set up the File in Layout: Double sided needs to be enabled: more info on Layout setup for multi layering

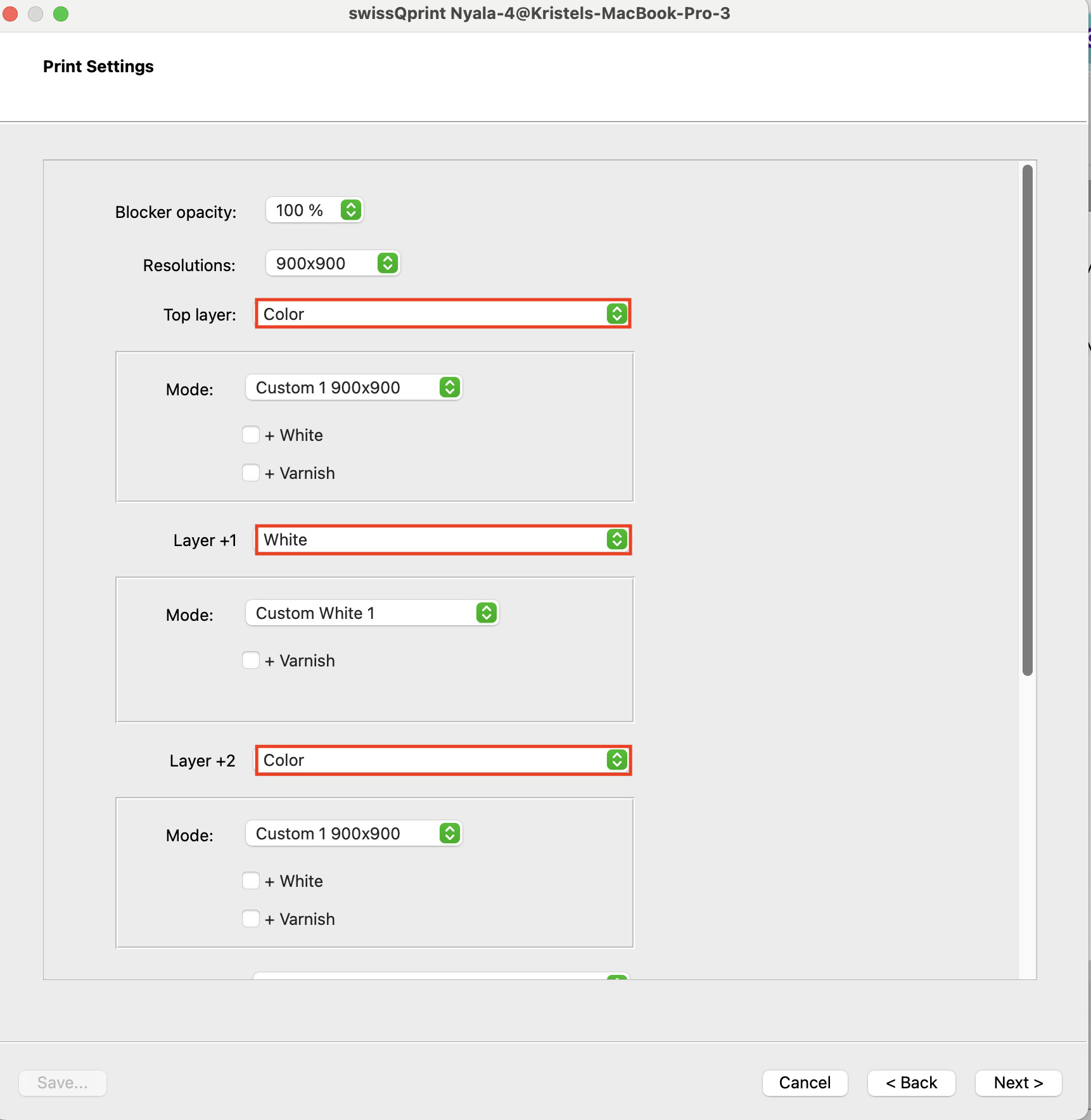

A. 3 Layer with same image Front and Back
Layering = Color / White / Color

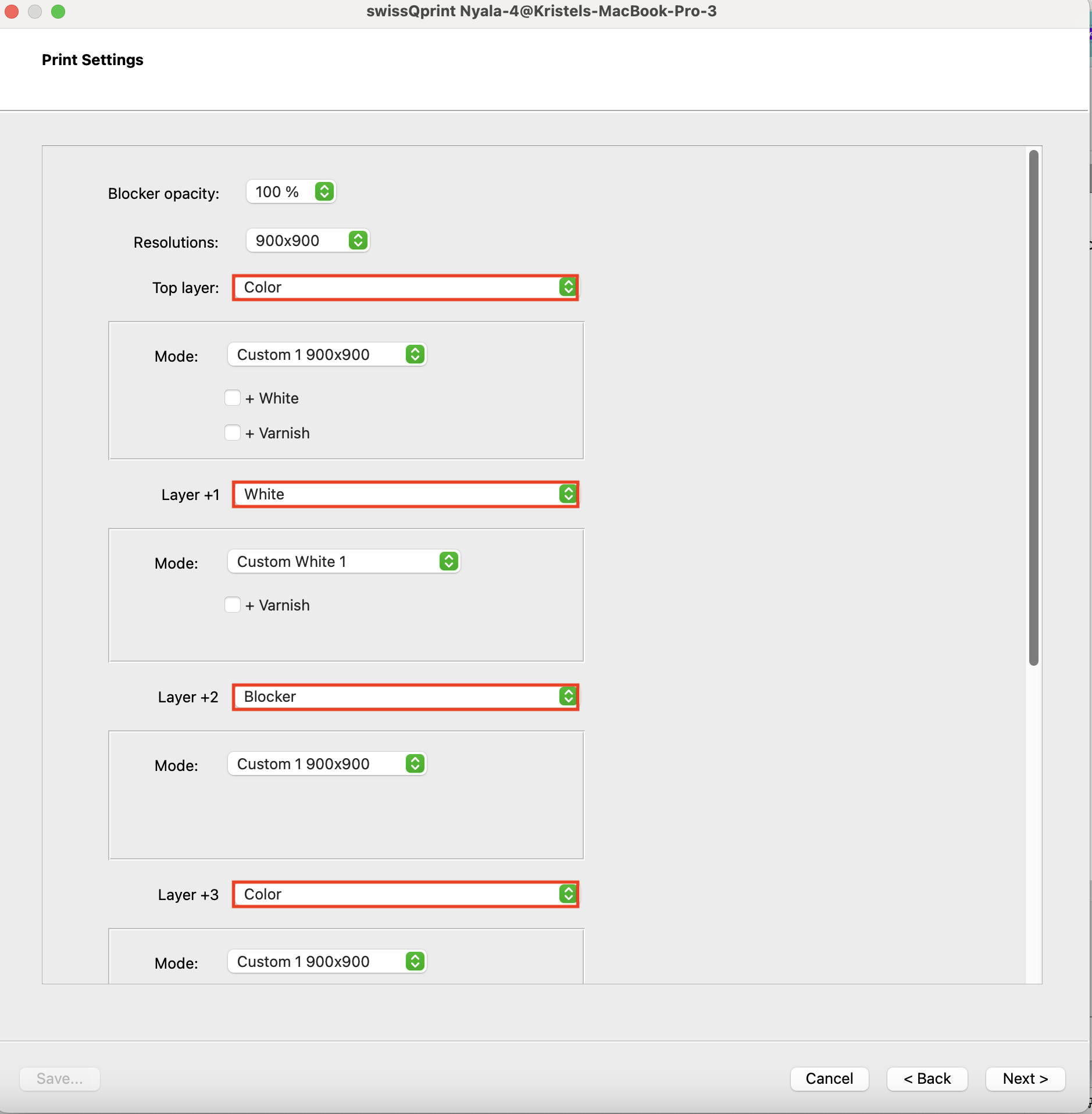

B. 3 Layer with Different image Front and Back
Layering = Color / White / Blocker / Color
Note: The Blocker mode is not printed, only activated to allow for a different image Front and Back
Note: The Blocker mode is not printed, only activated to allow for a different image Front and Back

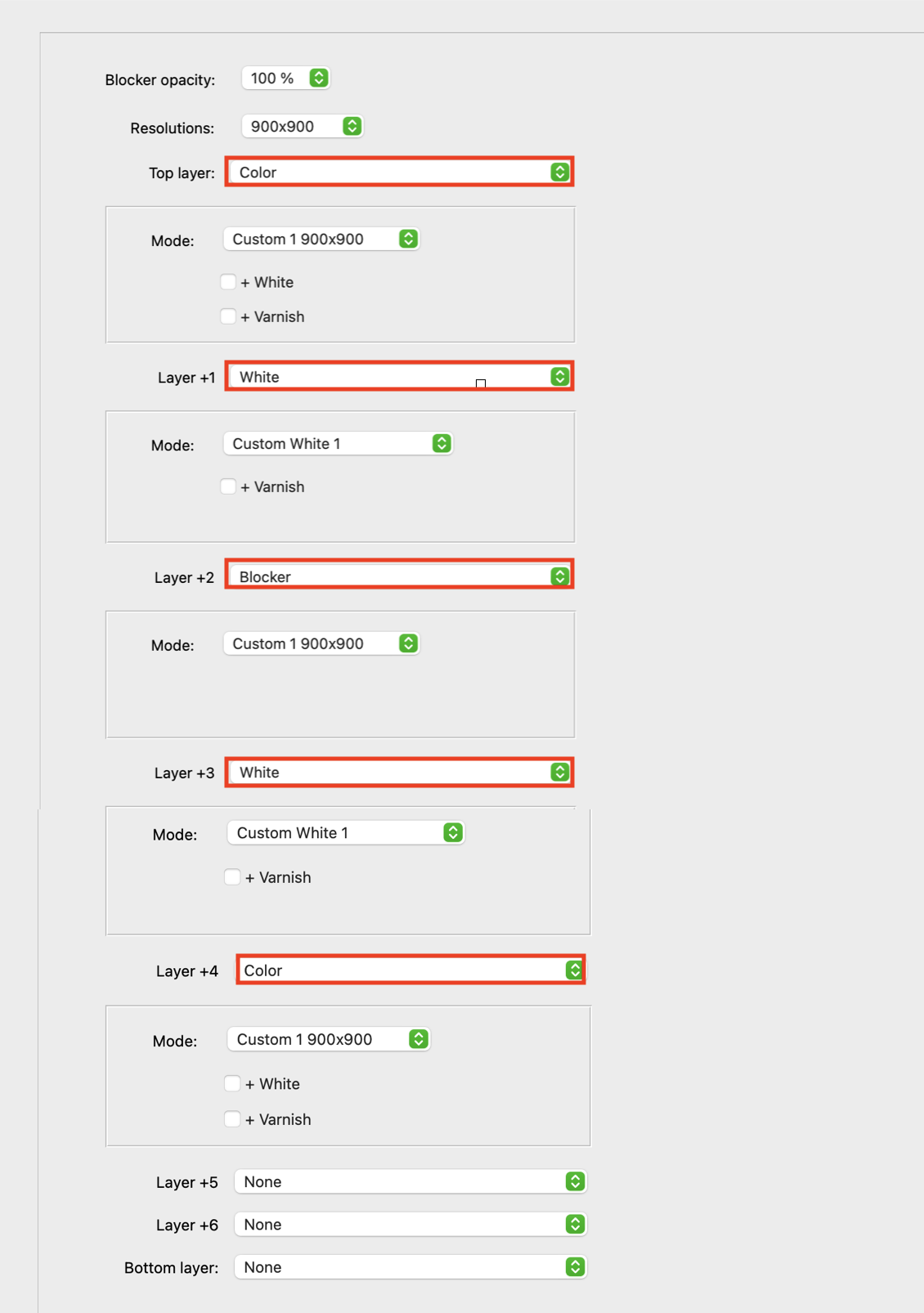

C. 5 Layer with Different or Same image Front and Back
Layering = Color/ White/ Blocker / White/ Color
