Tiling Function

You can now apply basic tiling functions to jobs directly in Layout – previously this function was only available in Editor.

To access the new settings, click on the job that you want to apply tiling to and then click on the tiling icon.

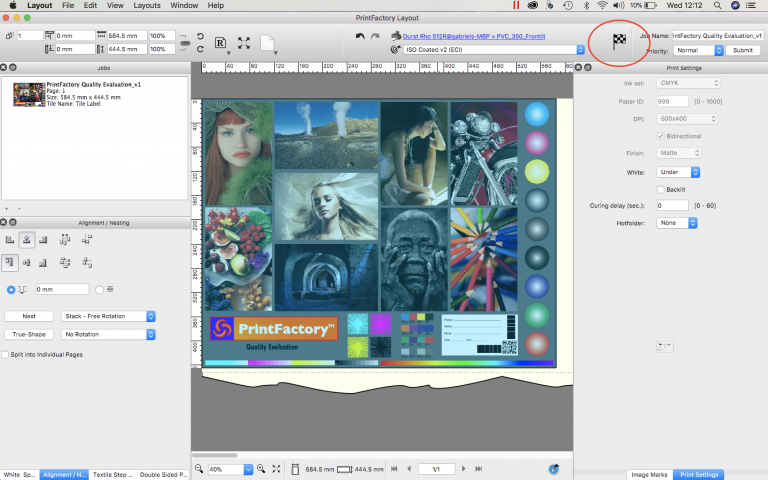

The screenshot below shows how to access the new function:
