Nest info page

Nest info page

Explanation Headers and Buttons

Available from version 6.91.0

This shows you a Preview of the Nest result which we call a Candidate. A Candidate is not a Job, so it's not Submitted to the RIP manually or automatically yet.

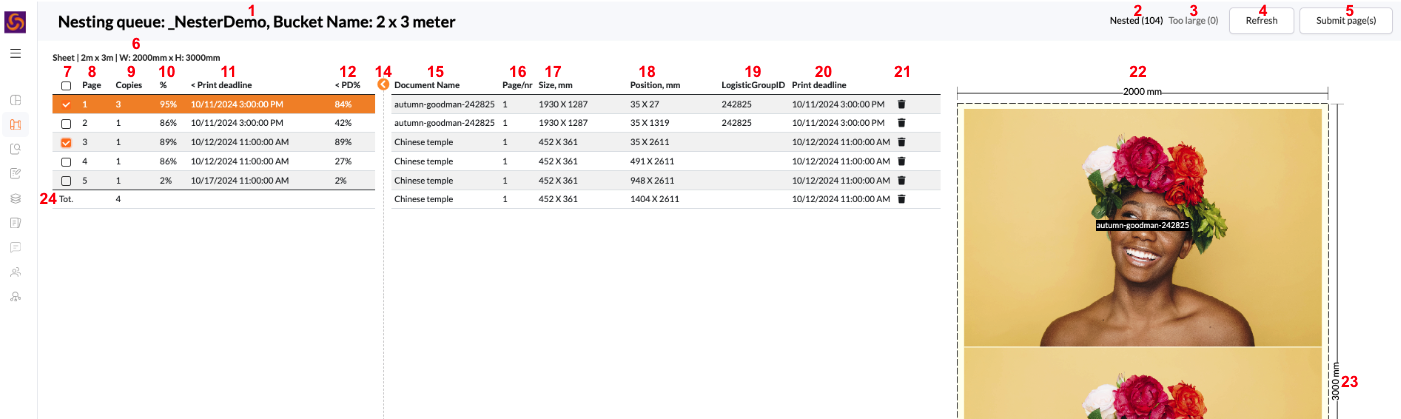

Example of Media Type "Sheet"



Legenda
  1. Name of the Nesting Queue and Name of Bucket
  2. Total of nested Parts in whole Bucket, all pages
  3. Number of Parts that are Too large for the Media Size of the Bucket. Link is clickable and will show a list of Documents
  4. Refresh button will load the last Candidate of the Bucket. Useful when this page is opened for a while and the content of the Queue changed, therefore re-nested and a new Candidate created.
  5. Submit page(s), will Submit the selected Page or selected Pages. In your Account Setting for Nesting you can configure Multi-page submission behaviour.
  6. Media specifications selected in the Nesting Queue for this Bucket. Type | Name | Width x Height in Imperial or Metric based on your Unit Type from Account Settings
  7. Check box for selecting Multiple Pages for submission
  8. Page numbers of nested pages. Selecting a row, when orange, it shows all Parts in the table right and a preview of the Candidate for that page
  9. Copies that need to be printed from that Page. This is an option "Multi-copy pages" in the Nesting Preset that need to be enabled to return this result
  10. Total efficiency of placed Parts on the page. Also used for automatic triggering when PrintDeadline isn't used
  11. Shows the earliest PrintDeadline on that Page. Only shown when Documents with a PrintDeadline are submitted to the Nesting Queue
  12. Efficiency of all the Parts from the earliest PrintDeadline on this Page, without Fill-up. This percentage will be used for automatic triggering on efficiency
  13. Explained in Media Type Roll example
  14. Button to hide or unhide the Part details table
  15. Name of Document
  16. Page number of Document
  17. Size of the original document
  18. Starting point of the Document on the Media Left x Top from the left top
  19. Name of the LogisticGroupID which has been added while submitting the Document to the Nesting Queue. Column is only shown when Nesting Queue contains Parts with a LogisticGroupID
  20. PrintDeadline of the Part. Column is only shown when the Nesting Queue contains Parts with a PrintDeadline
  21. Click icon and it will delete that Part from this Bucket only
  22. Width of the Sheet size selected in this Bucket
  23. Height of the Sheet size selected in this Bucket
  24. Total amount of Copies/Sheet to be printed of the selected pages

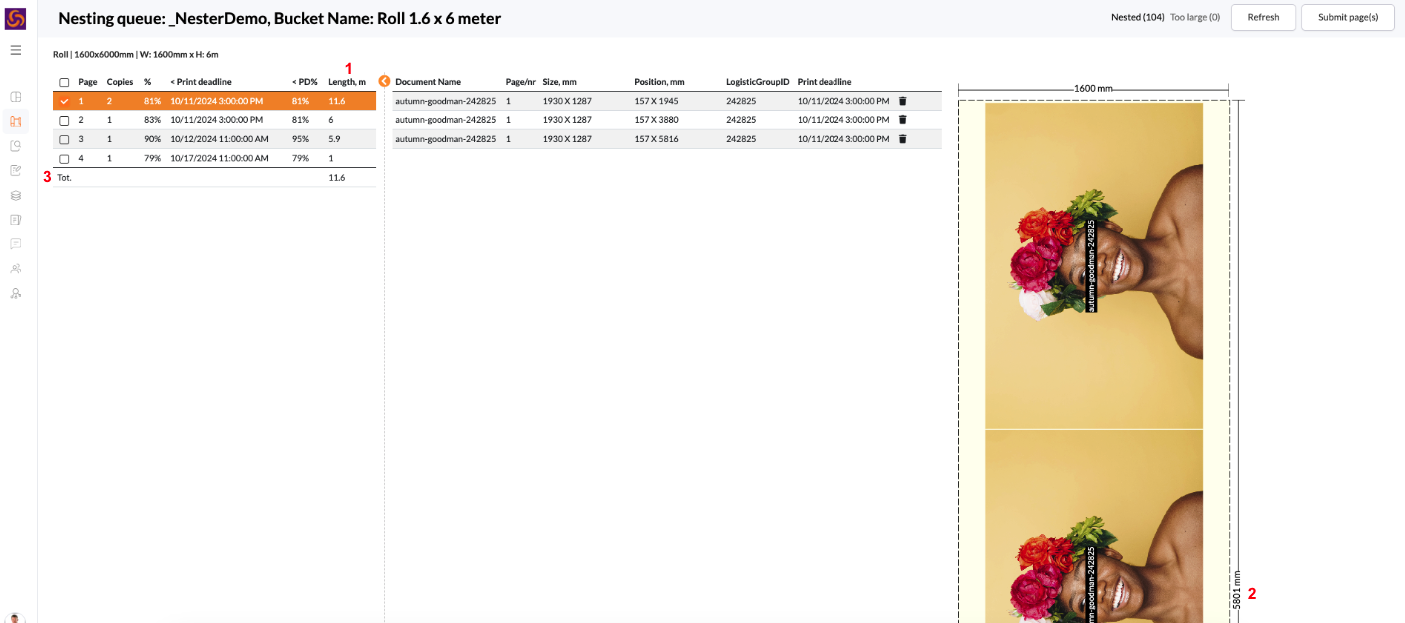

 Example of Media Type "Roll"




























Legenda (only differences compared to Media Type "Sheet")
  1. Total Length of the nested Parts on this Page. When Multiple Copies need to be printed of the Page this value is multiplied by the Copies
  2. Total length used on the Roll of the nested Parts on this Page per Copy
  3. Total Length to be printed of all selected pages
