PrintAgent Support for DFE’s

PrintAgent Support for DFE’s

PrintAgent (PA) is a service that can be installed on Windows or Linux operating systems on the DFE of a printer or cutter.  It functions as a local application, allowing remote RIPs to access local files on the DFE and spool files to the local hard drive without setting up sharing and access rights.   PrintAgent feeds back to the RIP:
  • Job status
  • Copy count
  • Ink and media consumption – depending on the printer

PrintAgent enables for the SwissQPrint drivers additional features: more info here

There is also a lightweight version of PrintAgent that is used for Job Status Tracking only.

Below is a list of printers and cutters that use PrintAgent

DevicePrintAgent
KornitRequired – Windows
Zund Cut CenterOptional for Job Tracking – Windows
SwissQPrintRequired – Windows
Durst AlphaOptional – Linux Lightweight
HP FB1x000 SeriesRequired (when RIP is not on DFE) Windows
IncaRequired – Windows
VutekOptional – Linux Lightweight

Installers

From V6.7.1 onwards, on Windows systems, the PA is part of the PrintFactory installer and can be found in c:\\Program Files\Printfactory.

Download PA for Windows

Download PA for Linux

Download PA for Windows (32 Bit)

Installation

Windows

The process for Windows is fairly straightforward:

  1. Move the installer to the desktop of the Printer or Cutters Digital Front End. Make sure not to install PA on the RIP pc.
  2. Run the PA installer.
  3. Go to RIP, File -> Output device -> New and select the driver.
  4. Add the IP address of the printer/ cutter

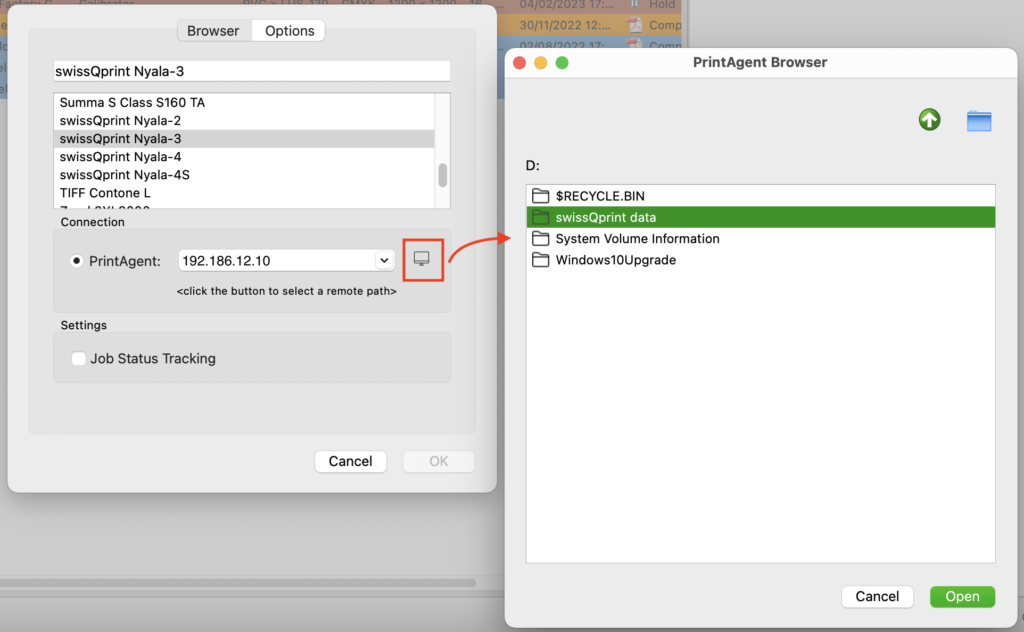

  5. select the screen icon left of the and then browse to the folder you wish the output fils to go to.


Linux

Below are the steps written out and here is a video

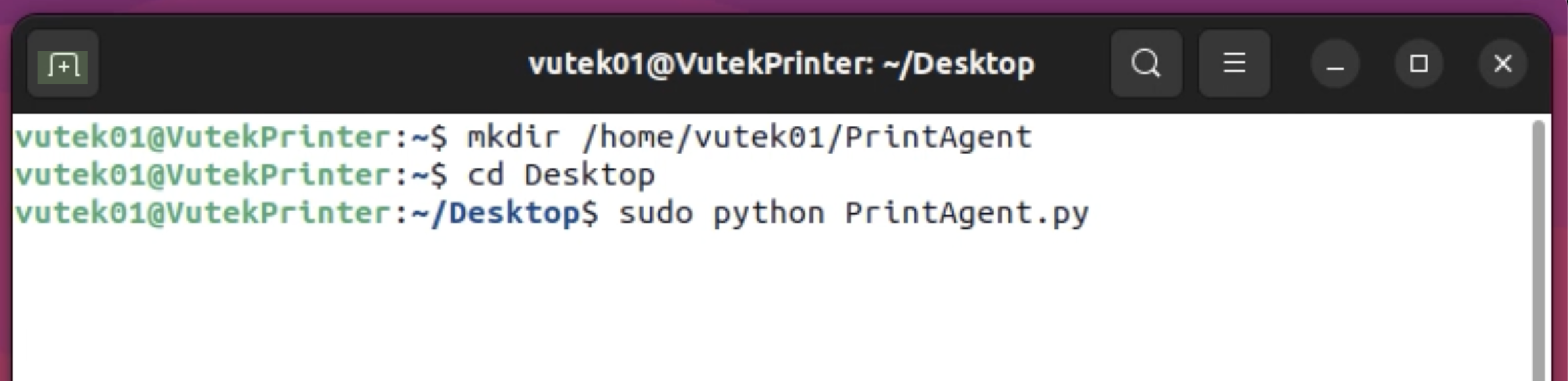

  1. Copy the downloaded PrintAgent.py file on the Desktop directory of the Linux DFE.
    Note: the installer will be automatically removed once installation is complete. Make copy if desired.
  2. Create a PrintAgent directory at the home location (path would be .e.g /home/vutek01)

  3. Open Terminal app
  4. Type: cd Desktop and click enter
  5. type: sudo python PrintAgent.py and click Enter

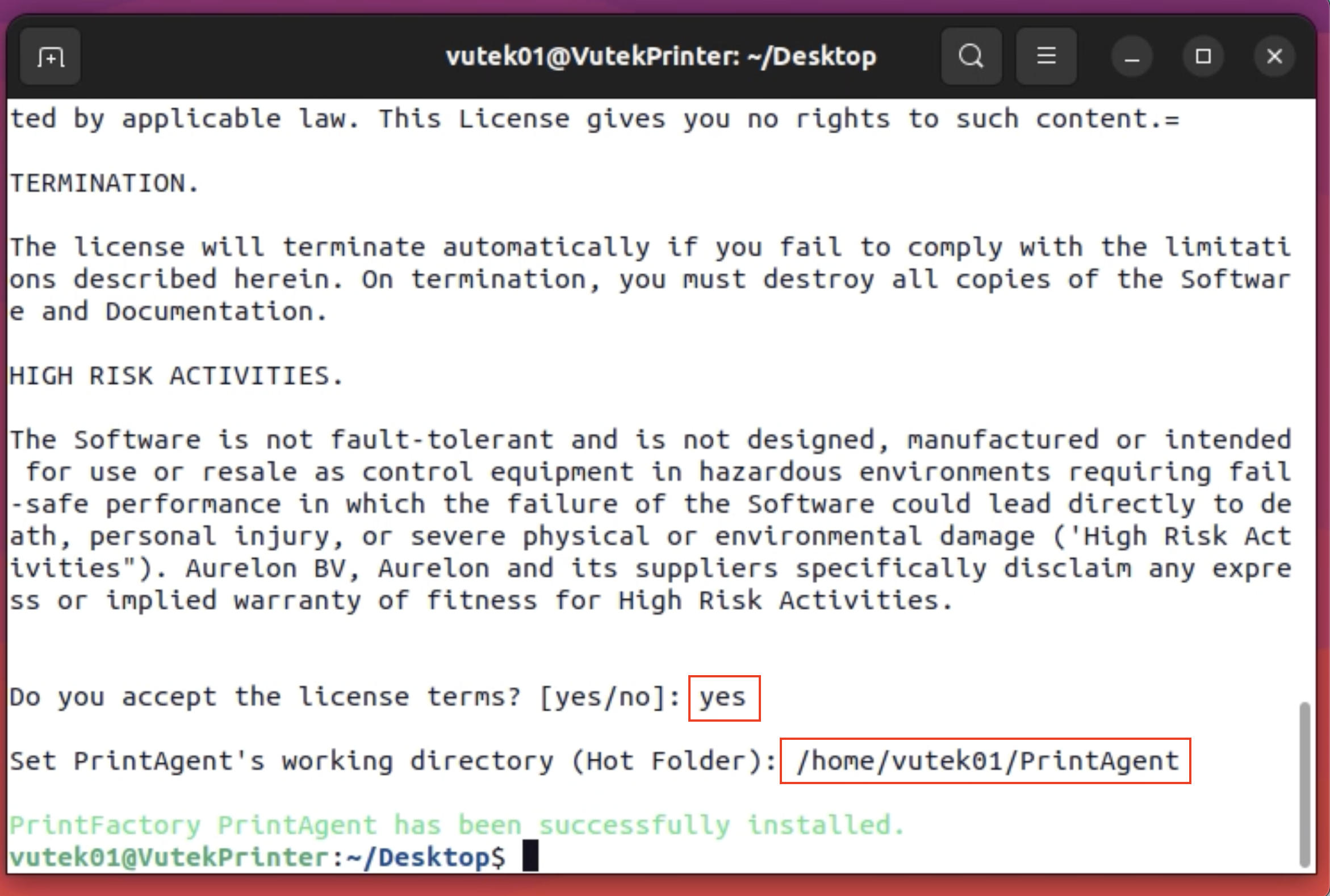

  6. type : Yes (to accept license) and click Enter
  7. Type /home/vutek01/PrintAgent and click Enter


To change the settings it is easiest to uninstall the PrintAgent  install PrintAgent again.
