How to Set Up a Cloud Nest Queue in PrintFactory

This guide walks you through the full setup of a Cloud Nest Queue in PrintFactory, including preparing the RIP , creating nesting presets, and the nest queue, and then connecting everything through the Workflow tool.

Note: These tools are available in our Connect plans.

Step 1 in the RIP: Prepare Output Queues (RIP)

Before configuring anything in the Cloud, you’ll need to set up the local RIP queues that receive the final nested jobs.

  1. Open PrintFactory RIP.

  2. Right-click your printer or cutter and select New Queue.

  3. In the new queue window:

    • Name it clearly (e.g. Canon_Queue_1)

    • Set a HotFolder location

    • Leave all other settings as default and save the queue.

  4. Repeat this for each printer and cutter that you want to be able to setup nesting for in our cloud.

Note: These queues do not handle layout or cutting logic. They simply receive completed jobs from the Cloud.

Step 2: Configure Nesting in the Cloud

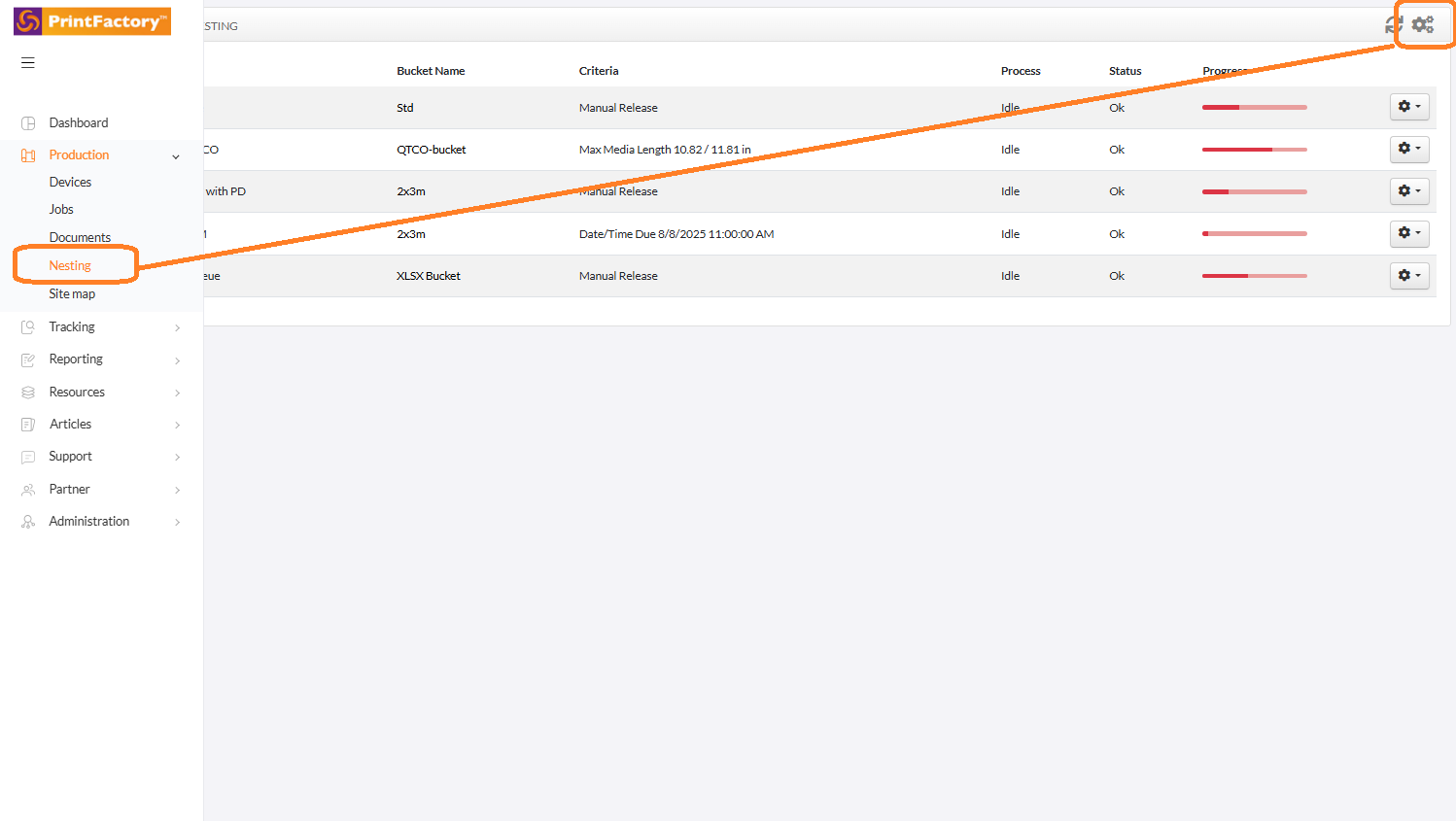

Navigation:

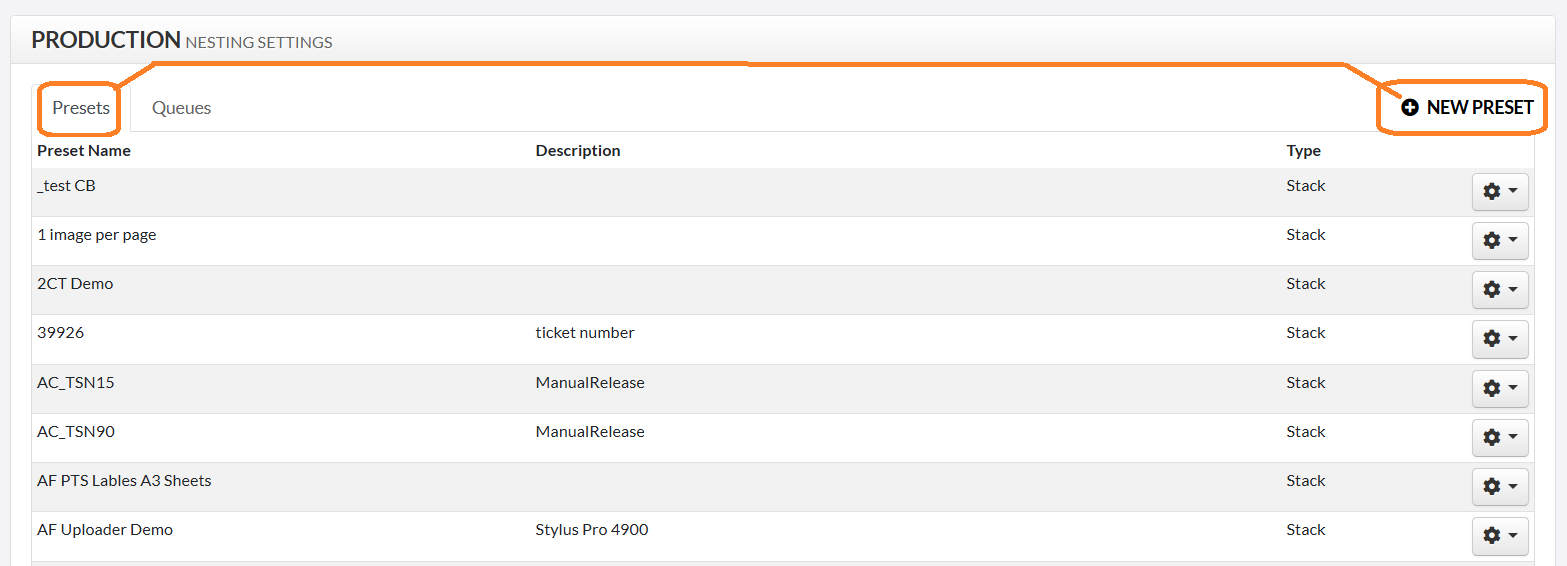

Create a Nest Preset (Presets Tab)

  1. In the Presets tab, click New Preset or duplicate an existing one.

  2. Configure the preset with:

    • Media width

    • Margins

    • Nesting gap

    • Enable/disable:

      • True-shape nesting

      • Butt-up nesting

      • Step & Repeat

      • Efficiency Trigger (e.g. 75%)

      • Maximum Job Age (e.g. 15 minutes)

  3. Save the preset.

This preset determines when and how jobs get nested in the cloud.

Related Article:
Cloud Nester Setup Guide

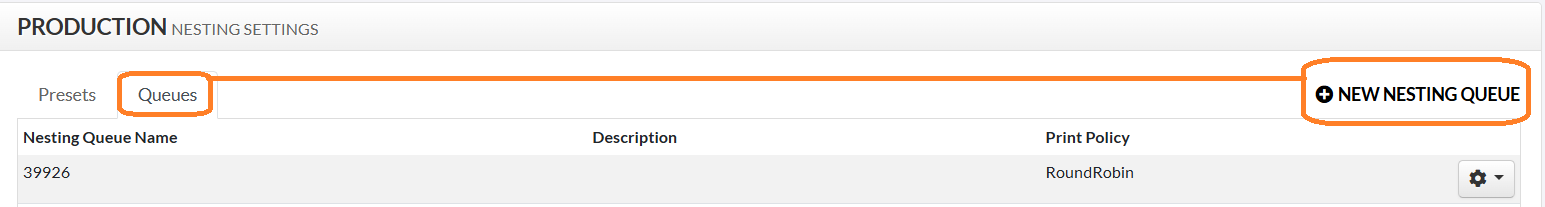

Set Up a Nest Queue (Queues Tab)

  1. Go to the Queues tab and click New Nesting Queue.


  2. In the Output tab:

    • Select the Nest Preset you created earlier

    • Choose a Print Policy and Reference Profile

    • Add printer and cutter queues you created in Step 1

    • Optional: Enable marks, labels, and email notifications

  3. In the Buckets tab:

    • Define one or more media widths (e.g. 54”, 64”, 96”)

    • These control what sizes jobs will be tested against for best fit

  4. Save the Nest Queue.

The Nest Preset defines the logic behind how, when and what is nested together; The buckets define the available media widths to try to nest on.

Related Articles:

Step 3: Build the Workflow

  1. Open the PrintFactory Workflow Tool

  2. Create a new workflow with:

    • Input Node (e.g. HotFolder, XML, Excel)

    • Nest Queue Node (choose the Cloud Nest Queue you configured)

  3. Save and activate the workflow.

No Output node is needed. The Cloud will route jobs directly to the printer and cutter queues based on the nesting logic.

Related Articles:


What Happens Next?

Once the workflow is active:

  • Jobs are dropped into the workflow input

  • Routed to the Cloud Nest Queue

  • Held in a bucket until nesting conditions are met (efficiency or age)

  • Automatically nested and released to RIP hotfolders for printing and cutting
